Professional-Grade Dead Weight Tester for High Medium and Low-Pressure Gas Systems

Description pneumatic hand pump pressure gauge calibrator

XY-2002 High-Pressure Gas Calibrator
The XY-2002 is a professional-grade calibrator developed for high, medium, and low-pressure gas systems, including vacuum applications.

Key Features:

• High-quality stainless steel and aluminum alloy construction

• Advanced aviation sealing technology for reliability

• Precision machining and user-friendly operation

• Suitable for calibrating pressure gauges, transmitters, sensors, and vacuum gauges

Applications:

• Industrial pressure calibration

• Laboratory and field maintenance

• Process and quality control

This calibrator combines robust materials and precision engineering to deliver accurate and dependable performance across various pressure measurement scenarios.

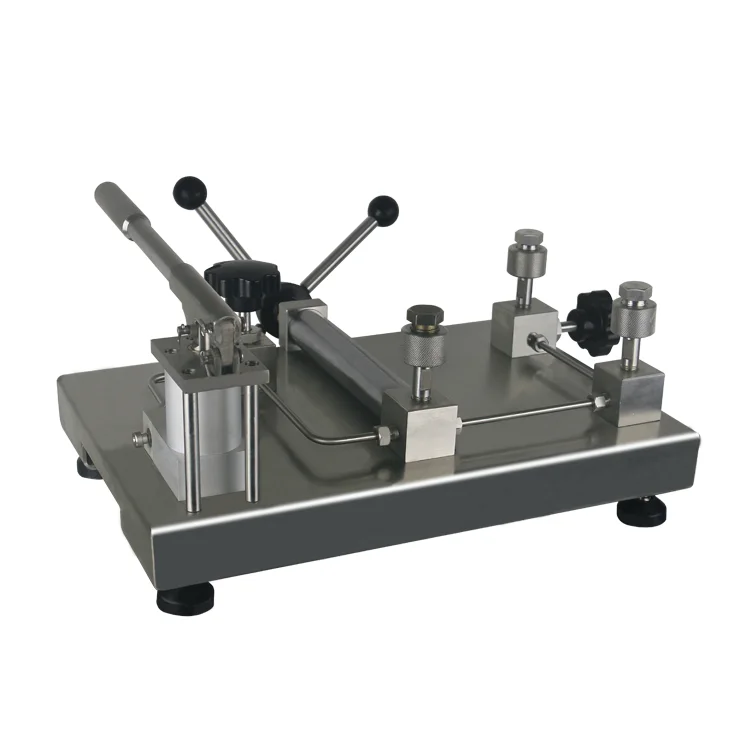

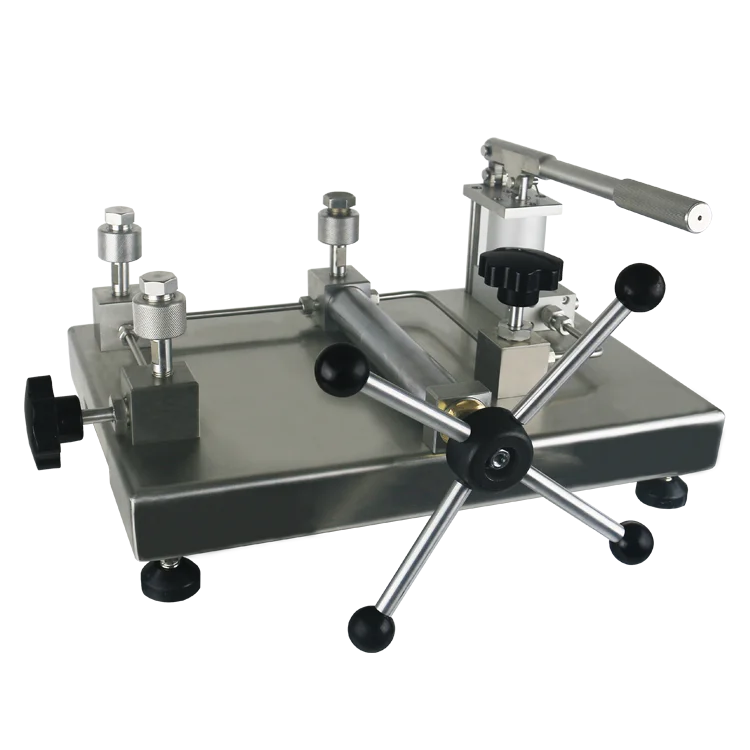

Detailed Images pneumatic hand pump pressure gauge calibrator

Specification pneumatic hand pump pressure gauge calibrator

1.Create pressure range: (-0.095 ~ 10) MPa.

2.Selection: XY-2002a (-0.095 ~ 4) MPa Low

XY-2002b (-0.095 ~ 6) MPa pressure

XY-2002c (-0.095 ~ 10) MPa high-pressure

3.Output size: M20 * 1.5 (based on field instrumentation interfaces can provide a variety of different adapters, see pressure accessories)

4.Minimum controllable adjustment degree: 10Pa

5.Output Interface: M20 × 1.5 (three)

6.Dimension: 300mm × 300mm × 150mm

7.Weight: 10kg

Features pneumatic hand pump pressure gauge calibrator

1.Pressure transmission medium is clean and free of impurities of water, do not pollute the environment
2.Out of the oil-water separator, oil water separator to avoid isolating membrane rupture pressure source pollution and on the instruments were seized after the oil into the hidden dangers.
3. Special screw-down device, making steady boost and back check, easy to operate.
4. solve the traditional check valve control loop instability.
5. tiled open structure, easy maintenance and repair.
6. Unique exhaust mechanism, no do not create pressure on the pressure and difficult phenomenon.
7. medium efflux, avoiding dirty recycled to the pressure medium source pollution.
